ES1000 & ES1000ST Shredder Series Systems

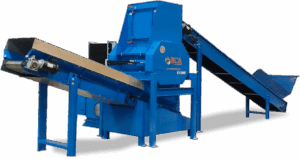

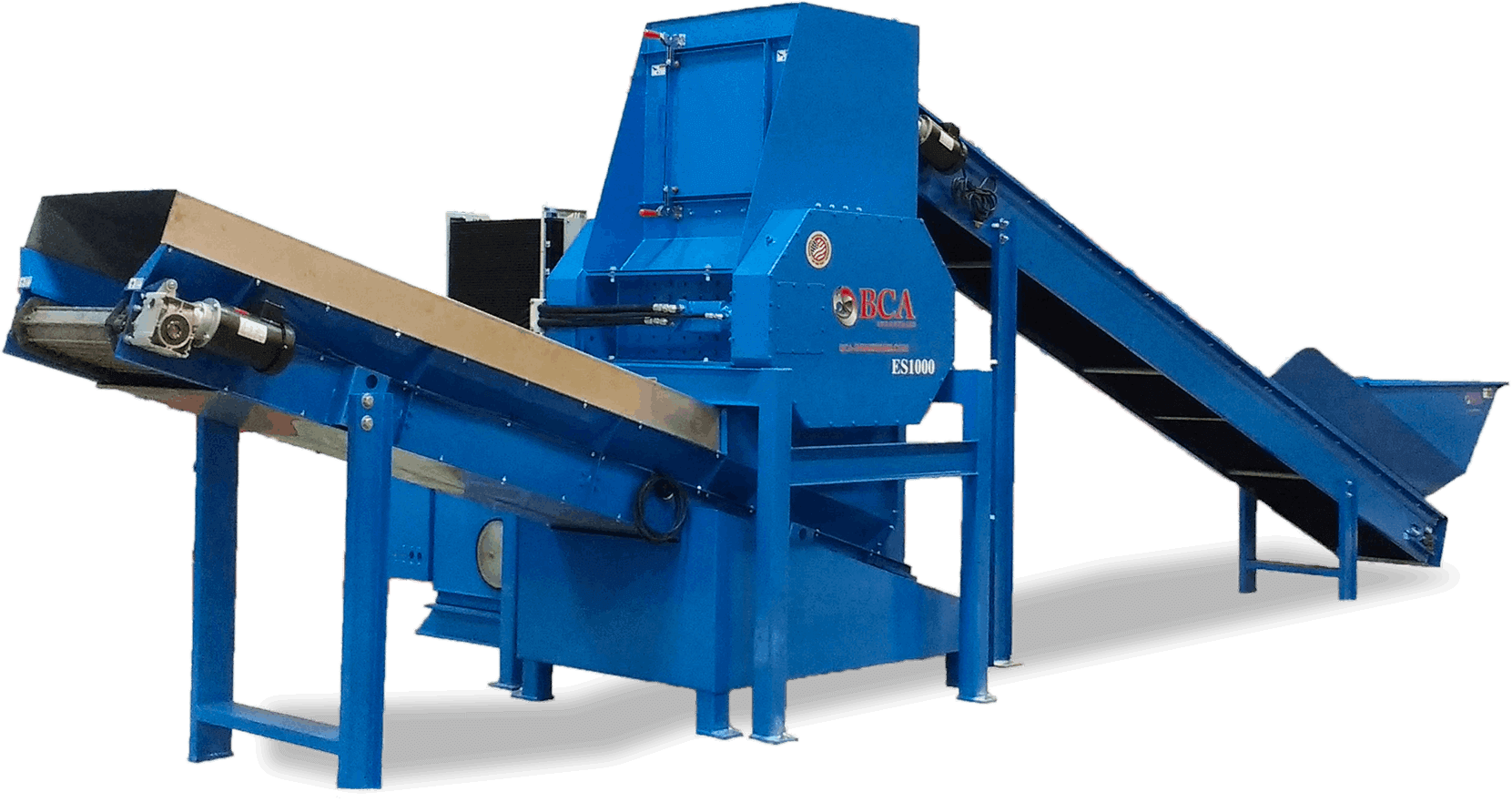

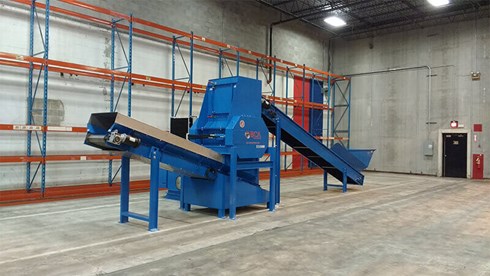

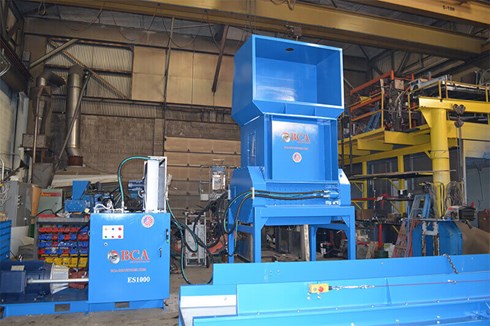

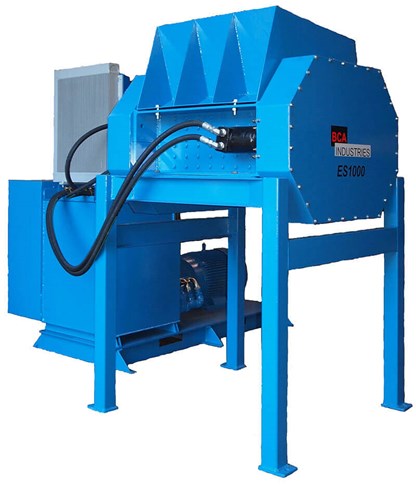

BCA Industries offers reliable dual shaft shredders for sale, including the high-torque ES1000 dual shaft shredder. Built for durability and easy maintenance, the ES1000 sets a new standard for low-speed, high-torque shredding. It functions as a standalone unit or pairs with a primary shredder for increased throughput.

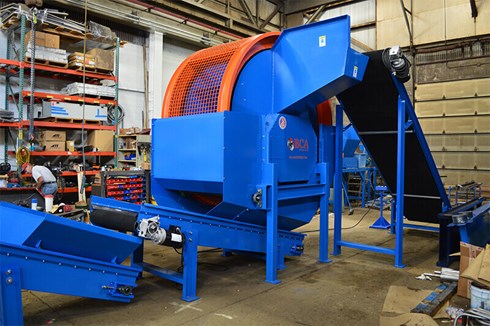

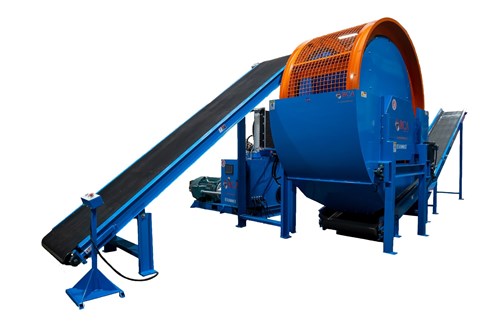

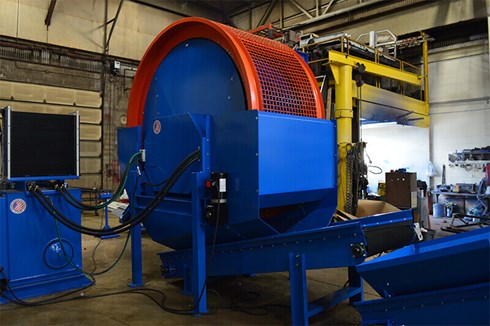

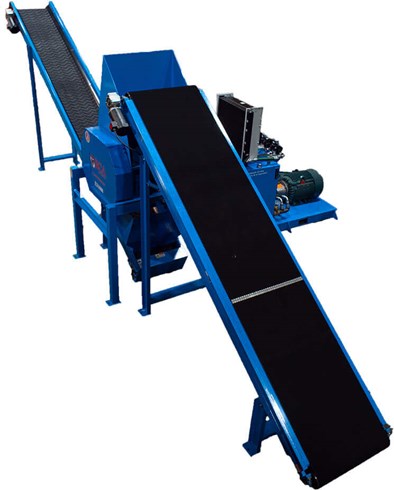

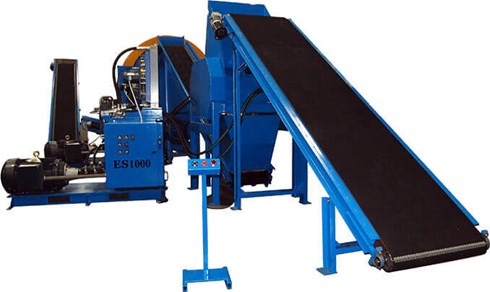

Featuring a 24″ x 10′ outfeed conveyor that connects seamlessly to the discharge hopper, the ES1000 recirculates material through a rotating screen until the desired size is achieved. Despite its power, it maintains a compact 250 sq. ft. footprint, including the in-feed conveyor. The ES1000ST dual shaft shredder offers the same robust design with an added recirculating trommel screen for optimized separation.
Explore our dual shaft shredders for sale to find the right solution for your needs.
- 9,400 lbs. total gross weight (including power supply)
- 1000 series hydraulic shredder 36″ x 28″ cutting chamber 2″ x 14.625″ four hook knives
- Shreds 1 – 4 tons per hour (Throughput varies depending on the material, screen size, and HP)
- Self-contained, recirculating screen
- 1 inch to 4-inch screen size
- PLC controlled overload and auto-reverse (can be custom programmed)
- Low maintenance hydraulic system
- 5 inch 6 key shafts
- Maintenance-free Proprietary knife clamping system
- Proprietary bearing protection zones

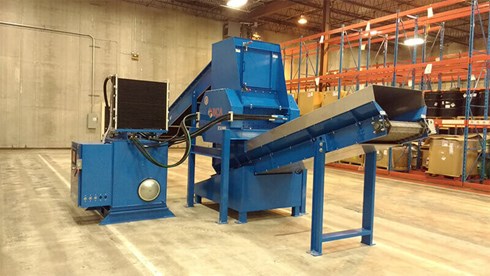

- 100 HP Hydraulic power supply (HP can be increased up to 150 HP)
- 1000 series modular head for 1-hour downtime at resharpening
- Automotive and light-duty truck tires
- Plastics
- Electronic Waste
- Paper
- Batteries
- Many secondary reduction applications
Contact BCA Industries today for a free quote on the ES1000 Shredder Series Systems.
Key Features of Our Dual Shaft Shredders for Sale
If you’re looking for a dual shaft shredder for sale, this high-torque shredder eliminates “catastrophic cost” parts and reduces expenses. Our dual shaft shredders for sale are the most cost-effective option per ton of operation.
- NO COMPLEX EXPENSIVE GEARBOX to wait for and replace from the manufacturer but a simple double HD chain drive and oil bath system. Easy access panels to help with inspection.
- A redundant and inexpensive “off the shelf” hydraulic system employing dual motors that are not only inexpensive and American-made but are also readily available.
- Every part of the cutting head can be replaced inexpensively making rebuild costs lower and more predictable from knives to spacers to super nuts to dead zones.
- A proprietary 6 key shaft design to eliminate shaft “washout”. The old hex shaft others use has been eliminated along with all of its well known service problems.
- Downtime and catastrophic costs are the shredder owner’s number 1 industry complaint. All 1000 series machines both portable and stationary have a MODULAR HEAD that can be swapped out at far less cost than any other manufacturer for a 1 hour change out to make downtime near zero. An extra head is offered at a very inexpensive price to help the owner have nearly ZERO DOWNTIME.
- All 1000 series system shredders, conveyors, magnets etc. are built by BCA here in Milwaukee. Fully integrated to work together for maximum efficiency with one number to call if there’s any issue.
- Elimination of a full time millwright or mechanic for an owner. A 1000 series head rebuild program where an owner can inexpensively have the knives and head rebuilt by the factory with a service warranty.
THE BCA Head Service Program
- The 1000 series head was uniquely engineered in the design to be lighter weight and still industrial durable. This allows BCA to offer the ONLY TRUE PORTABLE shredder in its class.
- The 1000 series head removes with a standard 5,000 lb. forklift. 4 bolts and 6 hoses and it gets placed on our CUSTOM STEEL PALLET INCLUDED to protect it while shipping.
- The head can be shipped back to BCA in usually 2 days from anywhere in the US using inexpensive LTL carriers.
- The head is factory serviced by experienced technicians with new or rebuilt BCA knives and spacers. This is done at a labor and materials cost (including rebuilt knives) of just $7,900.00 if there are no other parts needed. FACTORY CERTIFIED AND SHIPPED BACK usually with a 7 to 10 day turnaround. On a primary tire shredder for instance that is less than 6 cents per tire.
- Knowing that you do not require that level of skill on staff allows the shredder owner to greatly REDUCE LABOR COSTS and uncertainty.
